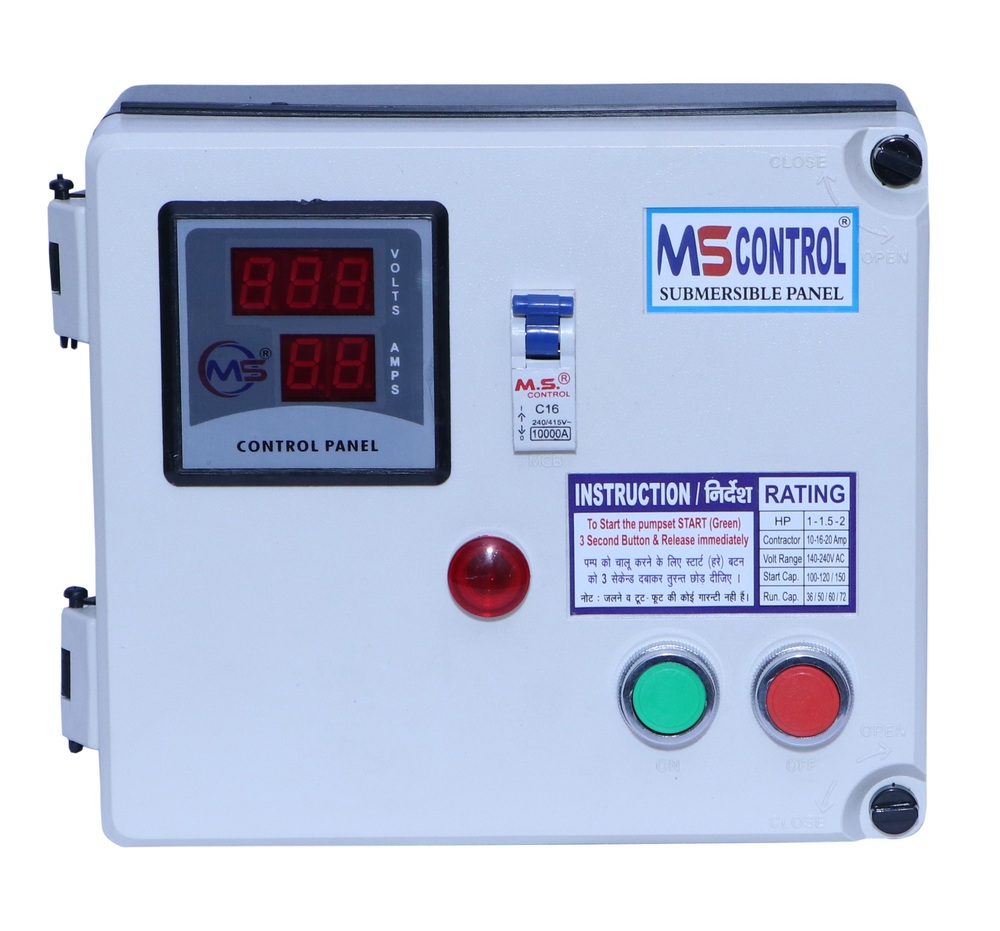

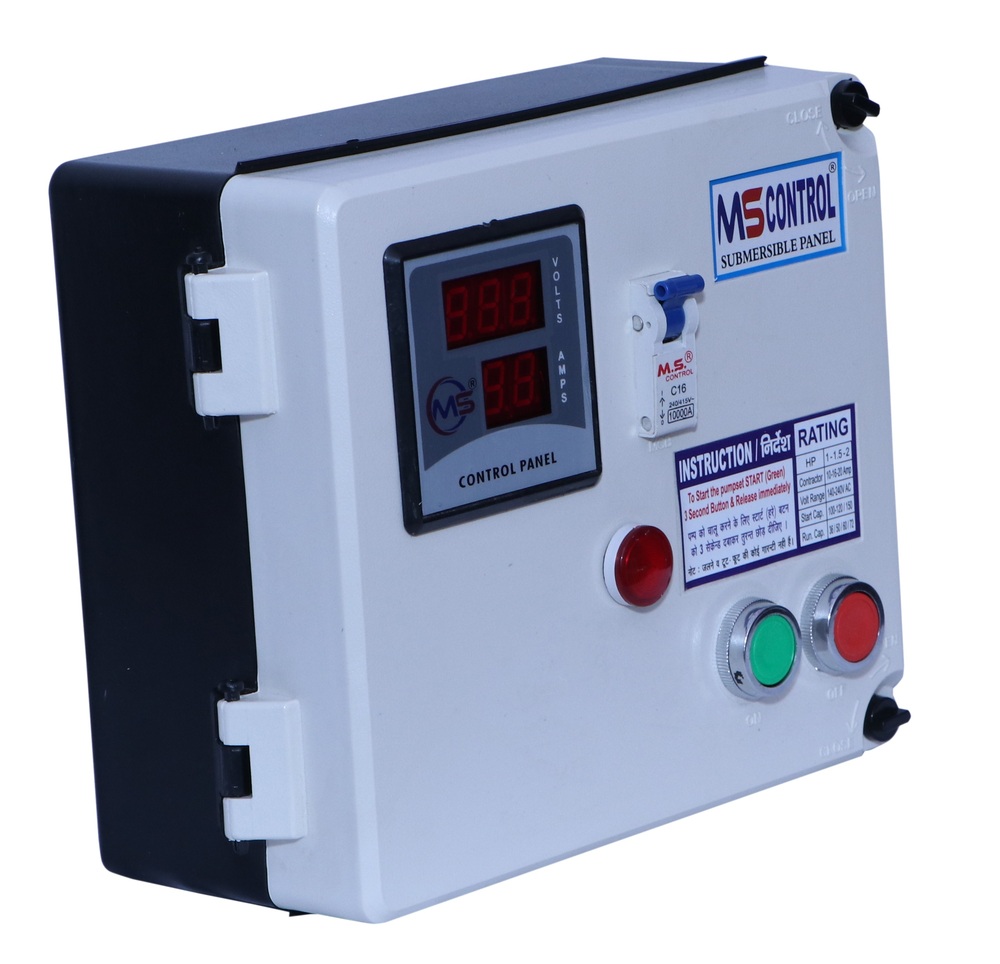

1 HP Single Phase Submersible Panel

800 INR/Piece

Get a Price/Quote

Product Details:

Thickness single phase motor motor starter
Rated Insulation Voltage 280
Way control panel for submersible motor pump
Protection Level IP66
Cover Material Metal
Rated Operation Voltage 220
Base Material Metal Base
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1 HP Single Phase Submersible Panel Price And Quantity

Price 800 INR/Piece
Minimum Order Quantity 20 Piece

1 HP Single Phase Submersible Panel Product Specifications

Product Type Other
Frequency (MHz) 50 Hertz (HZ)
Base Material Metal Base
Rated Operation Voltage 220
Cover Material Metal
Warranty 1 Year
Dimension (L*W*H) 29*24*16
Surface Finish Powder Coated
Protection Level IP66
Surface Color Other
Material Mild Steel
Maximum Output Current 280 Volt (v)
Way control panel for submersible motor pump
Rated Insulation Voltage 280
Thickness single phase motor motor starter
Rated Voltage 240 Volt (V)

1 HP Single Phase Submersible Panel Trade Information

Supply Ability 1000 Piece Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Product Description

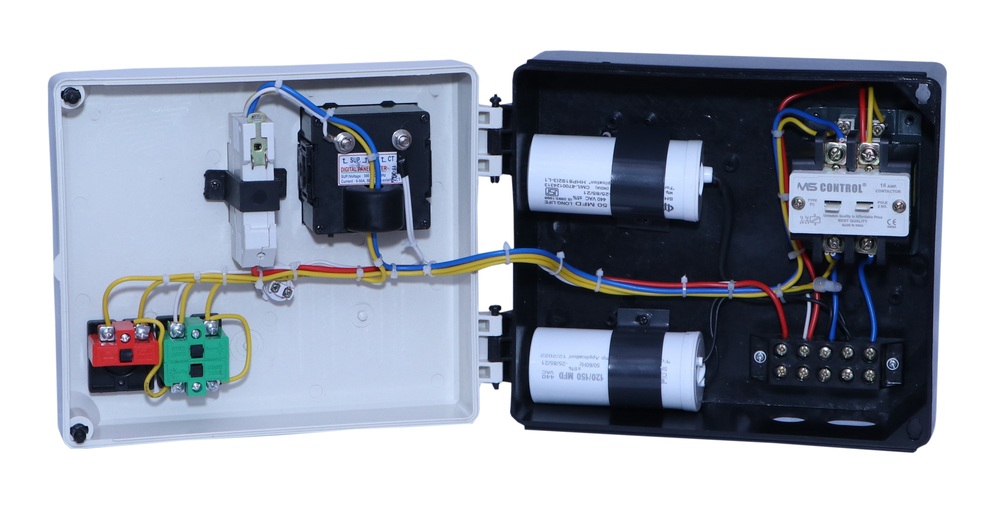

MS CONTROL 1. HP Control Panel for single phase Motor Pump provided with 16 Amps BCH type Contactor 2 pole with easy replaceable heavy duty fixed and moving contacts and Coil Voltage range between 120-220 Volts with easy replacement of coil.
Switching device provided-Single Pole ( Automatic MCB ) Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 16 Amps which ensures protection against short circuit.
Start Capacitors of rating 120-150 Mfd provided for giving initial torque to motor of 1.HP connected to Start Button which charges and discharges the start capacitor.
Run Capacitors of rating 50 Mfd provided for smooth running and better life to motor of 1. HP connected to Neon bulb indication for showing motor running condition.
Ammeter ( digital )provided with for measuring current consumed by motor pump. Voltmeter ( digital) Provided for measuring incoming voltages and can be read by pressing a switch for long life of voltmeter. Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires.
